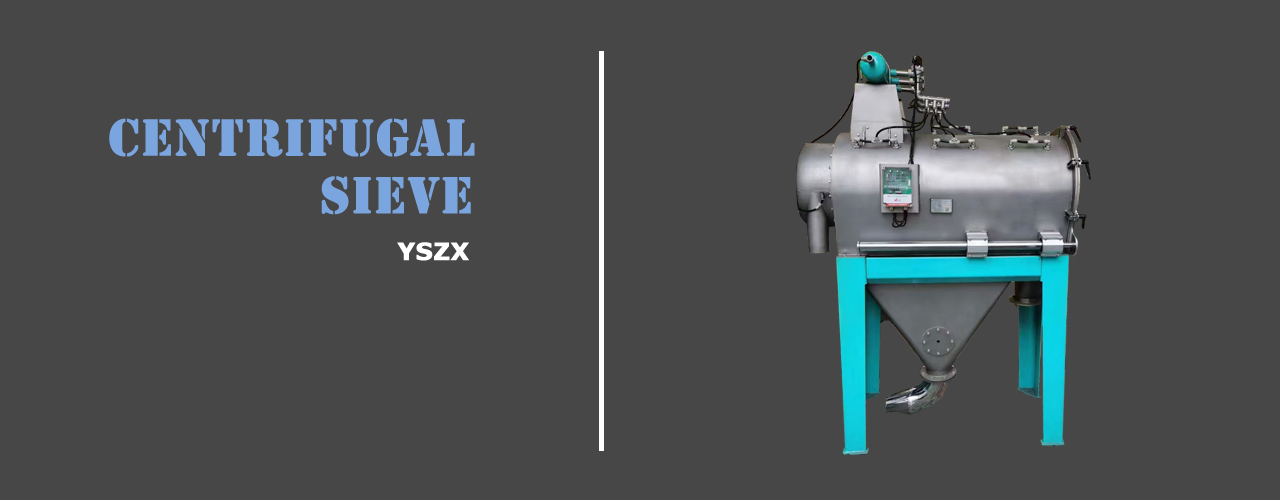

Centrifugal Sieve

Description & Features

1. Widely used in positive pressure conveying systems such as food plant, starch plant, flour plant and chemical plant to ensure the safety of powder use.
2. Ensure continuous online use of flour within the range of 0.2-3kg atmospheric pressure, with a screening fineness of less than 600 microns and stable output.
3. The system has low investment, low power consumption, small footprint, and easy layout.
4. The positive pressure online flour drum cleaning sieve has higher material perforation rate, finer screening fineness, stronger ability to screen out foreign objects, and higher output than traditional flour cleaning sieve.
5. Due to the fact that there will be no residue of materials inside the machine under the action of airflow, it completely solves the problem of material residue, mold and insects in the traditional powder screening equipment.



Product Specification

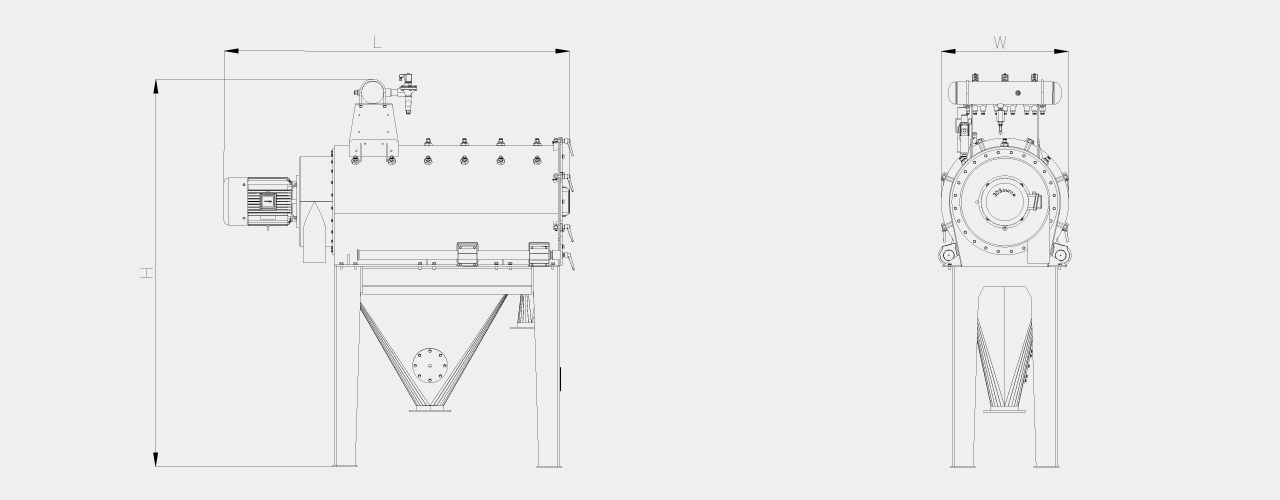

Model	Drum Size	Rotary Speed	Power	Capacity	Dimension
YSZX-50	Dia.500x1090mm	960rpm	5.5~7.5kw	5~15t/h	1930x370x2210mm
YSZX-60	Dia.600x1220mm	960rpm	5.5~11kw	10~30t/h	2150x450x2500mm
